18000 BTU AC Amps: What to Expect

So, you’re wondering, “How many amps does a 18000 BTU air conditioner use?” We found that a 18000 BTU air conditioner typically draws between 10 to 15 amps. This is a common question, and understanding your AC’s power draw is key to preventing tripped breakers and ensuring your home’s electrical system can handle the load. It really depends on the specific model and its energy efficiency rating.

Think of BTU as the cooling power. A higher BTU means more cooling capacity, but it also usually means a higher amperage draw. It’s important to know this number to ensure your circuit can handle the appliance. We also found that factors like the age of your unit and the ambient temperature can affect its power consumption.

• An 18000 BTU AC usually needs 10-15 amps.
• Energy efficiency greatly impacts amp usage.
• Check your unit’s label for exact specs.
• Ensure your circuit breaker is properly rated.

Let’s break down exactly what that means for your home’s electricity and how to figure out the specifics for your unit.

You’ve got your 18000 BTU air conditioner, ready to tackle the heat. But before you flip that switch, it’s smart to understand its power needs. Knowing how many amps your AC uses is crucial for keeping your home’s electrical system happy and avoiding annoying power interruptions. Let’s dive into the electrical side of your cool air.

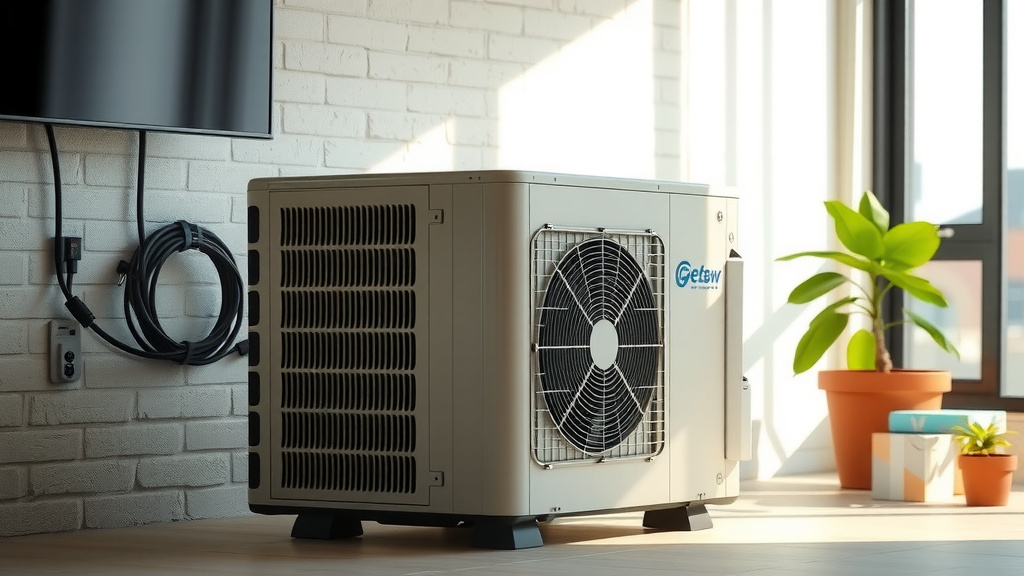

Understanding Your Air Conditioner’s Power Needs

So, what’s the scoop on the amperage for an 18000 BTU unit? We found that these air conditioners typically draw between 10 and 15 amps. This range isn’t a hard and fast rule for every single unit, though. Several factors come into play, and we’ll break them down for you.

BTU: The Cooling Muscle

BTU stands for British Thermal Unit. It’s basically a measure of how much heat an air conditioner can remove from a room in one hour. An 18000 BTU unit is quite powerful, suitable for larger rooms or even multiple smaller ones. Think of it like the horsepower in a car; a bigger number means more power. More power often translates to higher energy consumption, which brings us back to amps.

Amps: The Electrical Flow

Amps, or amperes, measure the rate of electrical current. It’s like the amount of water flowing through a pipe. Your air conditioner needs a certain flow of electricity to operate its compressor and fans. This flow is measured in amps. Your home’s electrical panel has circuit breakers designed to handle specific amp loads. Exceeding that load causes the breaker to trip, cutting off power to prevent damage.

Factors Affecting Your 18000 BTU AC’s Amperage Draw

The 10-15 amp range is a good general guideline, but your specific unit might be a bit higher or lower. Here’s what influences that number:

Energy Efficiency Ratings (EER and SEER)

This is a big one! Air conditioners come with efficiency ratings that tell you how well they convert electricity into cooling. The Energy Efficiency Ratio (EER) is a common rating. A higher EER generally means a lower amperage draw for the same cooling power.

Similarly, the Seasonal Energy Efficiency Ratio (SEER) looks at efficiency over an entire cooling season. Units with higher SEER ratings are typically more efficient and use fewer amps.

We found that a high-efficiency 18000 BTU unit might be at the lower end of the amp spectrum, perhaps closer to 10-12 amps. An older, less efficient model could push closer to 15 amps or even slightly more.

Voltage Requirements

Most residential air conditioners in the U.S. operate on 115 volts or 230 volts. An 18000 BTU unit is often a 230-volt appliance. Here’s why voltage matters: Power (measured in watts) is calculated by multiplying voltage by amperage (Watts = Volts x Amps). Therefore, for the same amount of cooling power (BTUs), a 230-volt unit will draw fewer amps than a 115-volt unit.

For example, a unit needing 2000 watts would draw about 17.4 amps on 115 volts (2000W / 115V) but only about 8.7 amps on 230 volts (2000W / 230V). Most 18000 BTU units are designed for 230V circuits, which is why they often run on circuits rated for 15 or 20 amps.

Compressor Type and Technology

Not all compressors are created equal. Newer technologies, like inverter compressors, are much more efficient. They can adjust their speed based on cooling needs, rather than just turning fully on or off. This means they can use significantly fewer amps during operation when full cooling isn’t required.

A standard, non-inverter compressor might have a more consistent, higher amp draw. An inverter-driven unit, however, might have a slightly higher initial startup amp draw but will then settle into a much lower running amp draw.

Age and Maintenance of the Unit

Like any appliance, an air conditioner’s efficiency can decrease over time. Worn-out parts or a dirty system can make your AC work harder. This means it will likely draw more amps than when it was brand new.

Regular maintenance, such as cleaning air filters and ensuring the coils are clean, helps your AC run as efficiently as possible. Many experts say consistent upkeep is key to maintaining its original performance and amp draw.

Where to Find Your AC’s Exact Amperage Information

You don’t have to guess! Your air conditioner has a label that provides all the critical electrical information you need. Here’s how to find it and what to look for:

Checking the Unit’s Data Plate

Look for a sticker or metal plate on the side or back of your air conditioner unit. This is often called the data plate or nameplate. It’s a treasure trove of technical specifications.

You’ll want to find:

• Rated Amps (or FLA – Full Load Amps): This is the maximum amperage the unit is designed to draw under normal operating conditions.
• Voltage: This will tell you if it’s a 115V or 230V unit.
• Wattage (if listed): This can also help you calculate amperage if you know the voltage.

If you can’t find the plate or the writing is too faded, consult your owner’s manual. It will have the same specifications listed.

Understanding the Numbers on the Label

Sometimes, you might see a few different amp ratings. The most important one for your circuit breaker is usually the FLA (Full Load Amps) or the Rated Amps. You might also see something like MCA (Minimum Circuit Ampacity) and MOCP (Maximum Overcurrent Protection). Your unit will likely recommend a circuit breaker size that is 125% of its FLA, according to National Electrical Code guidelines.

For an 18000 BTU unit, you’ll commonly see an FLA listed around 10-15 amps. If it says 12 amps FLA, you’d typically need a circuit breaker rated for at least 15 amps (12 amps x 1.25 = 15 amps).

• Save

Matching Your AC to Your Home’s Electrical System

Now that you have a better idea of your AC’s amp draw, let’s make sure your home’s wiring is up to the task.

Circuit Breaker Capacity

Your circuit breaker panel is the gatekeeper for your home’s electricity. Each breaker is labeled with its amp rating (e.g., 15A, 20A). You need to ensure that the circuit breaker dedicated to your air conditioner is rated higher than the AC’s maximum amp draw.

Many 18000 BTU units require a dedicated 15-amp or 20-amp, 230-volt circuit. Using an undersized breaker is dangerous and could lead to overheating and fire. It’s also important that this circuit isn’t shared with other high-draw appliances.

Dedicated Circuits Are Key

We found that it’s best practice for high-power appliances like air conditioners to have their own dedicated circuit. This means that the breaker for your AC only powers your AC and nothing else. This prevents overloading the circuit when other appliances kick on.

If your AC is sharing a circuit with other items (like a microwave or a toaster oven), you’re much more likely to experience tripped breakers, especially on hot days when the AC is working hardest.

Consulting an Electrician

When in doubt, always consult a qualified electrician. They can inspect your current electrical panel, wiring, and determine if you have the appropriate circuits to safely power your 18000 BTU air conditioner. This is especially important if your home has older wiring or if you’re installing a new, powerful AC unit.

They can also identify if your panel is overloaded or if upgrades are needed. Your safety and the longevity of your appliance depend on proper electrical setup.

Quick Checklist for Your AC’s Power Needs

Before you power up your 18000 BTU unit, run through this quick checklist:

• Find the Data Plate: Locate the sticker on your AC unit for its electrical specifications.
• Note the FLA/Rated Amps: Write down the maximum amp draw listed.
• Check Your Circuit Breaker: Ensure the breaker is rated higher than the AC’s FLA (typically at least 125%).
• Confirm Dedicated Circuit: Verify that your AC has its own circuit and isn’t sharing power.
• Assess Voltage: Make sure your outlet and breaker match the AC’s voltage requirement (usually 230V for 18000 BTU).
• Consider Professional Help: If anything seems unclear or outdated, call a qualified electrician.

Conclusion

You’ve learned that your 18000 BTU air conditioner typically uses between 10 to 15 amps. Remember, factors like its energy efficiency rating and voltage play a big role in this number. Always check your unit’s data plate for the exact specifications. It’s essential to ensure your home’s electrical system, especially the dedicated circuit and breaker, can safely handle this load. Don’t hesitate to call a qualified electrician if you have any doubts about your wiring. Making sure your AC is properly supported means cooler comfort without worrying about tripped breakers.

Frequently Asked Questions

What happens if my circuit breaker trips when my AC is running?

A tripped breaker usually means your air conditioner is drawing more amps than the circuit is rated for, or the circuit is overloaded. This could be because the AC unit is too large for the circuit, it’s sharing the circuit with other appliances, or the breaker itself is faulty.

Can I use an extension cord for my 18000 BTU air conditioner?

It’s strongly advised not to use extension cords for high-amperage appliances like a 18000 BTU air conditioner. Extension cords are not designed to handle the continuous, high electrical load, which can lead to overheating, damage to the cord, and a fire hazard. Always plug your AC directly into a properly rated wall outlet on a dedicated circuit.

How does the temperature outside affect my AC’s amp draw?

On extremely hot days, your air conditioner has to work harder to cool your space. This increased workload means the compressor and fans will run more often and at higher capacity, leading to a higher amp draw than on milder days. This is why checking your AC’s load is especially important during peak summer heat.

What’s the difference between starting amps and running amps for my AC?

Your air conditioner has a higher amperage draw when it first starts up, known as starting amps or surge amps. This is temporary as the compressor kicks in. Once running, it settles into its normal operating amperage, often called running amps or Full Load Amps (FLA). The FLA is what you primarily need to consider for circuit capacity.

Will a newer, more energy-efficient 18000 BTU AC use fewer amps?

Yes, generally, newer and more energy-efficient models will use fewer amps than older, less efficient units of the same BTU rating. Look for high EER or SEER ratings on the unit’s label, as these indicate better efficiency and typically lower ongoing amperage consumption.
